PZ 013

low draining channel for tile floor

PZ 013 low draining channel for tile floor

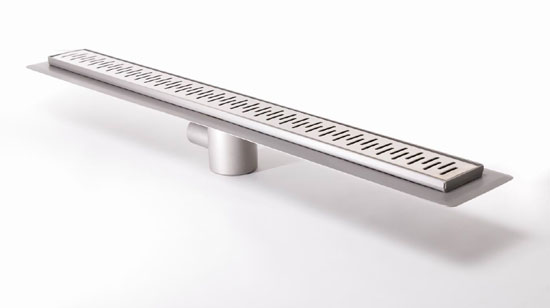

The PZ 013 channel has horizontal rims for water-proofing and to fit under tile flooring(not intended for installation along the wall). The channel outlet is located in the middle and the overall height including the outlet is 100 mm. Direction of the outlet can be set revolvingly. Standard lengths of channels are 800 a 900 mm.

Other custom made lengths possible. Material - stainless steel AISI 304, other possible on wish (e.g. AISI 316).

In standard design one of 5 types of cover grids can be selected ALFA 1 - BETA 3. Other designs of grids can be provided per order. Standard grids have polished finish. Balottini sand-blast surface finish – decent mat – can be ordered without any effect on price.

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Version types
PZ 013.800.grid type - draining channel for tile floor, length 800 mm, height 100 mm, possible grid type ALFA 1 - BETA 3
PZ 013.900.grid type - draining channel for tile floor, length 900 mm, height 100 mm, possible grid type ALFA 1 - BETA 3
b
Possible other lengths on your wish.
Basic technical information
Overall dimensions including rims:850 (950) x 130 x 100 mm
Dimensions of grid:791 (891) x 70 mm
Outlet:st.steel, d = 40 mm, revolving 360°
Overall depth necessary for installation:100 mm
Material:st.steel AISI 304 (other per order)
b
Figure

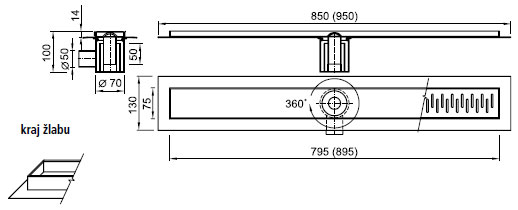

Figure - PZ 013 low draining channel for tile floor
b
b
Requirements for setting up the construction
  1. Suitable hole to rectify the channel
  2. Downpipe prepared according to drawing
  3. Waterproofing prepared according to drawing
b
Complete delivery
  • st.steel channel
  • st.steel outlet including waste trap
  • grid
b
Product title
PZ 013.800.grid type -
draining channel for tile floor, length 800 mm, height 100 mm, possible grid type ALFA 1 - BETA 3
PZ 013.900.grid type -
draining channel for tile floor, length 900 mm, height 100 mm, possible grid type ALFA 1 - BETA 3
b
Download information about the product
dwgPZ 013 data for projectants - ( 44 kB )
