PZ 011LP

floor draining trough between three walls

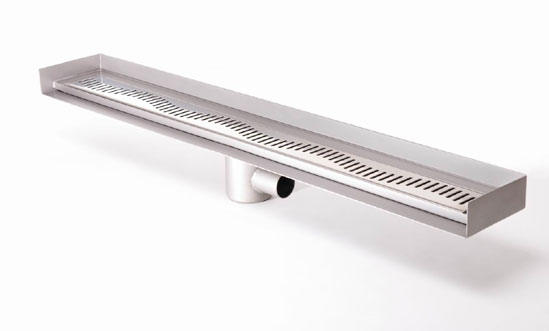

PZ 011LP floor draining trough between three walls

The PZ 011LP channel has rims for water-proofing and is designed to be installed between 3 walls – its rear and side rims are perpendicular to fit under vertical tiles. Front rim is horizontal to fit under tile flooring. The channel outlet is located in the middle and its overall height including the outlet is 100 mm only.

Standard lengths of channels are 800 a 900 mm. Other custom made lengths possible. Material - stainless steel AISI 304, other possible on wish (e.g. AISI 316).

In standard design one of 5 types of cover grids can be selected ALFA 1 - BETA 3. Other designs of grids can be provided per order. Standard grids have polished finish. Balottini sand-blast surface finish – decent mat – can be ordered without any effect on price.

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Version types
PZ 011 LP.800.grid type - floor channel between three walls, length 800 mm, height 100 mm, possible grid type ALFA 1 - BETA 3
PZ 011 LP.900.grid type - floor channel between three walls, length 900 mm, height 100 mm, possible grid type ALFA 1 - BETA 3
b
Possible other length according to your wish.
Basic technical information
Overall dimensions including rims:825 (925) x 117 x 131 mm
Dimensions of grid:791 (891) x 70 mm
Outlet:st.steel, d = 40 mm, revolving 360°
Overall depth necessary for installation:100 mm
Material:st.steel AISI 304 (other per order)
b
Figure

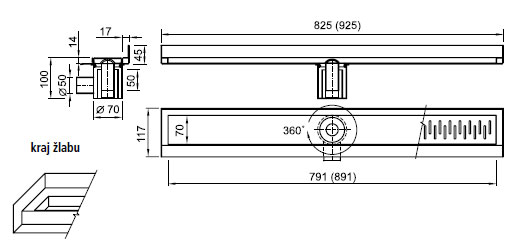

Figure - PZ 011LP floor draining trough between three walls
b
b
Requirements for setting up the construction
  1. Suitable hole to rectify the channel
  2. Downpipe prepared according to drawing
  3. Waterproofing prepared according to drawing
b
Complete delivery
  • st.steel channel
  • st.steel outlet including waste trap
  • grid
b
Product title
PZ 011LP.800.type of grid -
floor channel between 3 walls, lengths 800 mm, height 100 mm, possible grid type ALFA 1 - BETA 3
PZ 011LP.900.type of grid -
floor channel between 3 walls, lengths 900 mm, height 100 mm, possible grid type ALFA 1 - BETA 3
b
Download information about the product
dwgPZ 011LP data for projectants - ( 36 kB )
