AUM 16

automatic sensor-controlled tap

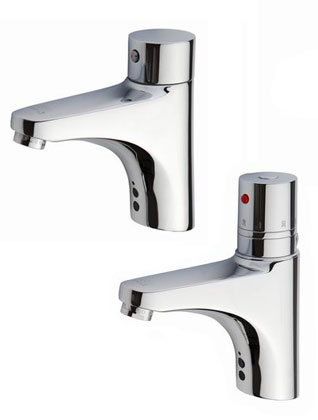

AUM 16 automatic sensor-controlled tap

AUM 16 is an automatic sensor-controlled tap for washbasins with connection to hot and cold water. Supplied in two possible versions – with mixing valve (AUM 16 and AUM 16.E) or with thermostatic valve (AUM 16.TV).

Water turns on automatically when hands are within the sensor's range and keeps on running for a short period of time after the hands have been removed from the scanning zone – after-flow delay time. The water stops flowing automatically if the sensor has been screened for longer than 30 seconds. The mechanism of the tap prevents overpressure of hot and cold water. The water temperature can be easily set by turning the upper ring on the tap

Automatic sensor-controlled taps AUM 16 meet EU standards and are intended for facilities where the user’s comfort and the maintenance of hygiene is required at maximum water savings.

Version types
AUM 16 - with mixing valve, supplied with 12 V from power supply ZAC
AUM 16.B - with mixing valve, supplied with 6 V (4 x AA battery)
AUM 16.E - for non-pressure through-flow or reservoir heaters – 12 V
AUM 16.TV - with thermostatic valve, supplied with 12 V from power supply ZAC
AUM 16.TVB - with thermostatic valve, supplied with 6 V (4 x AA battery)
AUM 16.TVE - with thermostatic valve for non-pressure through-flow or reservoir heaters – 12 V
b
Basic technical information
Radius of sensor:automatically adjusted (other radius with remote ctrl.DO)
Water inlet:G 1/2“
Water pressure:0,2 – 0,8 MPa (AUM 16.B, AUM 16.TVB)
 0,1 – 1,0 MPa (AUM 16, AUM 16.TV)
 0,2-0,6 MPa without fluctuation and bubbles – recommended 0,3 Mpa (AUM 16.E, AUM 16.TVE)
Diameter of installation opening in washbasin:min. 33 mm
After-flow period:0 – 4 sec. (adjusted to 1 sec.)
Power supply:12 V, 50 Hz (AUM 16, AUM 16.TV)
 6 V DC (AUM 16.B, AUM 16.TVB)
Power requirement:10 VA (AUM 16, AUM 16.TV)
 6 VA (AUM 16.TVE)
Source of power supply:ZAC 1/20 (max. 2 x AUM 16, AUM 16.TV)
 ZAC 1/50 (max. 5 x AUM 16, AUM 16.TV)
 AA batteries – 1,5 V (AUM 16.B, AUM 16.TVB) – 4 pcs.
Operating life of batteries:approx. 1,5 year at 100 operations a day
Weight:2,7 kg
b
Requirements for setting up the construction
  1. Set-up water inlet, pipe 1/2“ – as per picture
  2. Set-up outlet – as per siphon
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC (does not apply to AUM 16.B, .TVB)
  4. Ceramics of the washbasin assembled as per picture
b
Complete delivery
  • faucet with mixing or thermostatic valve
  • electronics with a holder for hanging
  • 2 x electromagnetic valve (AUM 16.E, .TVE – 1 pc.)
  • 2 x corner valve with filter (AUM 16.E, .TVE – 1 pc.)
  • mixing T – part with a cap nut (AUM 16.E, .TVE)
  • battery holder (AUM 16.B, TVB)
  • cylindrical batteries 1,5 V (AUM 16.B, TVB) - 4 pcs
  • connecting hoses
  • fixing strap
  • M6 screw with nut and pads – 2 pcs
  • tube with mastic
b
Figure

Figure - AUM 16 automatic sensor-controlled tap
b
b
Product title
AUM 16 -
with mixing valve - 12 V, 50 Hz
AUM 16.B -
with mixing valve - 6 V (4 x 1,5)
AUM 16.E -
with mixing valve for through-flow heater - 12 V, 50Hz
AUM 16.TV -
with thermostatic valve - 12 V, 50 Hz
AUM 16.TVB -
with thermostatic valve - 6 V (4 x 1,5)
AUM 16.TVE -
with thermostatic valve for through-flow heater - 12V,50Hz
b
Download information about the product
dwgAUM 16 data for projectants - ( 52 kB )
dwgAUM 16 TV data for projectants - ( 59 kB )
