		AUM 12 tap for washbasins with a rotary arm

AUM 12 is an automatic sensor-controlled tap for washbasins with a rotary arm and a thermostat for temperature setting. Water turns on automatically when the user's hands are within the sensor's range and turns off when they have been removed. Water keeps on running for a short period of time after the hands have been removed from the scanning zone – after-flow delay time. The water stops flowing automatically if the sensor has been screened for longer than 120 seconds.

Tap AUM 12 is supplied with d.c. voltage of 6 V from cylindrical batteries placed under the ceramics of the washbasin. It does not need any external input of power supply. The electronics program guarantees that the electromagnetic valve does not open the water inlet without enough battery capacity to ensure its closing.

The tap is equipped with a mechanism against excess pressure of hot and cold water.

Version types
AUM 12.1B - for one water
AUM 12.2B - for hot and cold water

The automatic sensor-controlled tap AUM 12 meets EU standards and is intended for every operation where the user’s comfort and the maintenance of hygiene is required at maximum water savings.

Basic technical information
Radius of sensor:	self-adjusting
Water inlet:	G 1/2“
Water pressure:	0,1 – 0,8 MPa
After-flow period:	0 – 4 sec. (adjusted to 1 sec.)
Source of power supply:	batteries AA – 1,5 V – 4 pcs
Operating life of batteries:	approx. 1,5 years at 100 operations a day
Weight:	4,0 kg

Requirements for setting up the construction
Set-up water inlet, pipe 1/2“ – as per picture Set-up outlet – as per siphon Ceramics of the washbasin assembled as per picture

Complete delivery
outflow arm with photocell head electronics electromagnetic valve mixing T – part with backflow valves (AUM 12.2B) corner valve with filter (AUM 12.2B – 2 pcs) battery holder cylindrical batteries 1,5 V - 4 pcs connecting hoses fixing strap M8 screw with nut and pads tube with mastic

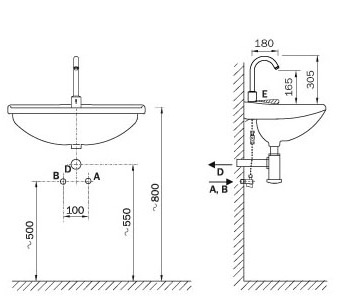

Figure

A -	cold water (inner pipe G 1/2")
B -	hot water (inner pipe G 1/2")
D -	outlet
E -	zone of scaning

Product title

AUM 12.1B -

with rotary simple tap for one water - 6V (4x1,5)

AUM 12.2B -

with rotary simple tap for hot and cold water - 6V (4x1,5)

Download information about the product
AUM 12 data for projectants - ( 59 kB )
