| | AUM 10automatic sensor-controlled tap | | | | | |
|

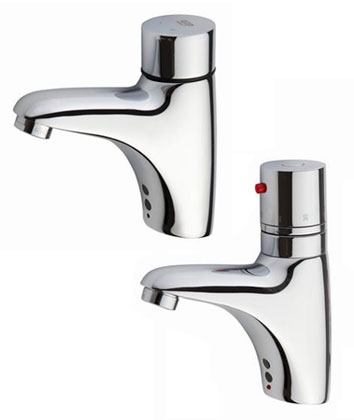

 AUM 10 is an automatic sensor-controlled tap for washbasins with connection to hot and cold water. Supplied in two possible versions – with mixing valve (AUM 10) or with thermostatic valve (AUM 10.TV).
Water turns on automatically when hands are within the sensor's range and keeps on running for a short period of time after the hands have been removed from the scanning zone – after-flow delay time. The water stops flowing automatically if the sensor has been screened for longer than 30 seconds. The mechanism of the tap prevents overpressure of hot and cold water. The water temperature can be easily set by turning the upper ring on the tap.
Automatic sensor-controlled taps AUM 10 meet EU standards and are intended for facilities where the user’s comfort and the maintenance of hygiene is required at maximum water savings. |
| | | Version types | | AUM 10 - with mixing valve, supplied with 12 V from power supply ZAC | | AUM 10.B - with mixing valve, supplied with 6 V (4 x AA battery) | | AUM 10.E - for non-pressure through-flow or reservoir heaters – 12 V | | AUM 10.TV - with thermostatic valve, supplied with 12 V from power supply ZAC | | AUM 10.TVB - with thermostatic valve, supplied with 6 V (4 x AA battery) | | AUM 10.TVE - with thermostatic valve for non-pressure through-flow or reservoir heaters – 12 V |  |
| | | Basic technical information | | Radius of sensor: | automatically adjusted (other radius with remote ctrl.DO) | | Water inlet: | G 1/2“ | | Water pressure: | 0,2 – 0,8 MPa (AUM 10.B, AUM 10.TVB) | | | 0,1 – 1,0 MPa (AUM 10, AUM 10.TV) | | | 0,2-0,6 MPa without fluctuation and bubbles – recommended 0,3 Mpa (AUM 10.E, AUM 10.TVE) | | Diameter of installation opening in washbasin: | min. 33 mm | | After-flow period: | 0 – 4 sec. (adjusted to 1 sec.) | | Power supply: | 12 V, 50 Hz (AUM 10, AUM 10.TV) | | | 6 V DC (AUM 10.B, AUM 10.TVB) | | Power requirement: | 10 VA (AUM 10, AUM 10.TV) | | | 6 VA (AUM 10.TVE) | | Source of power supply: | ZAC 1/20 (max. 2 x AUM 10, AUM 10.TV) | | | ZAC 1/50 (max. 5 x AUM 10, AUM 10.TV) | | | AA batteries – 1,5 V (AUM 10.B, AUM 10.TVB) – 4 pcs. | | Operating life of batteries: | approx. 1,5 year at 100 operations a day | | Weight: | 2,7 kg | |
| | | Requirements for setting up the construction | - Set-up water inlet, pipe 1/2“ – as per picture
- Set-up outlet – as per siphon
- Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC (does not apply to AUM 10.B, .TVB)
- Ceramics of the washbasin assembled as per picture
| |
| | | Complete delivery | - faucet with mixing or thermostatic valve
- electronics with a holder for hanging
- 2 x electromagnetic valve (AUM 10.E, .TVE – 1 pc.)
- 2 x corner valve with filter (AUM 10.E, .TVE – 1 pc.)
- mixing T – part with a cap nut (AUM 10.E, .TVE)
- battery holder (AUM 10.B, TVB)
- cylindrical batteries 1,5 V (AUM 10.B, TVB) - 4 pcs
- connecting hoses
- fixing strap
- M8 screw with nut and pads – 2 pcs
- tube with mastic
| |

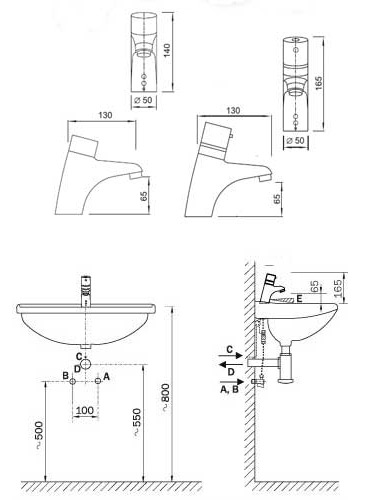

| | | Figure |
 | | | | A - | cold water (inner pipe G 1/2") | | D - | outlet | | B - | hot water (inner pipe G 1/2") | | E - | zone of scanning | | C - | electricity supply | |
| | | |
| |
| AUM 10 - | with mixing valve - 12V, 50Hz |
| AUM 10.B - | with mixing valve - 6V (4 x 1,5) |
| AUM 10.E - | with mixing valve for through-flow water heater - 12V, 50Hz |
| AUM 10.TV - | with thermostatic valve - 12V, 50Hz |
| AUM 10.TVB - | with thermostatic valve - 6V (4x1,5) |
| AUM 10.TVE - | with thermostatic valve for through-flow water heater - 12V, 50Hz |
| |
|
|
|
AUM 10 data for projectants - ( 49 kB )
