AUM 7

for sink with twin bowles

AUM 7 for sink with twin bowles

AUM 7 is an automatic sensor-controlled tap for sinks with the possibility of setting the water-flow and temperature by a lever mixer. Water turns on automatically after a brief shading of the photocell head by the user's hand and turns off after repeated shading of the sensor. If repeated shading of the sensor does not occur, water stops flowing after the lapse of adjusted period of time.

The easy setting of the temperature and flow of water is controlled by a lever mixer according to the individual requirements of each customer. The water cannot flow when the lever mixer is fully lowered. The arm of the tap is rotary.

The tap is equipped with a mechanism against excess pressure.

Automatic sensor-controlled taps AUM 7 meet EU standards and are intended for facilities where the user’s comfort and the maintenance of hygiene is required at maximum water savings.

Version types
AUM 7 - supplied with a.c. voltage of 12 V from source of power supply ZAC
AUM 7.B - supplied with d.c. voltage of 6 V from cylindrical batteries placed under the washbasin. It does not need any external input of power supply. The electronics program guarantees that the electromagnetic valve does not open the water inlet without enough battery capacity to ensure its closing.
AUM 7.E - for non-pressure through-flow or reservoir heaters.
b
Basic technical information
Radius of sensor:self-adjusting
Water inlet:G 1/2“
Water pressure:0,2 – 0,8 MPa (AUM 7.B)
 0,1 – 1,0 MPa (AUM 7)
 0,3MPa (AUM 7.E)
Diameter of installation opening in washbasin:min. 33 mm
After-flow period:5 – 100 sec. after 5 sec. (adjusted to 15 sec.)
Power supply:12 V, 50 Hz (AUM 7)
 6 V DC (AUM 7.B)
Power requirement:10 VA (AUM 7),6 VA (AUM 7.E)
Source of power supply:ZAC 1/20 (max. 2 x AUM 7 or 3x AUM 7.E )
 ZAC 1/50 (max. 5 x AUM 7 or 8x AUM 7.E)
 batteries – 1,5 V (AUM 7.B) – 4 pcs.
Operating life of batteries:approx. 1,5 years at 100 operations a day
Weight:2,5 kg
b
Requirements for setting up the construction
  1. Set-up water inlet, pipe 1/2“ – as per picture
  2. Set-up outlet – as per siphon
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC (does not apply to AUM 7.B)
b
Complete delivery
  • tap with lever mixer
  • photocell head
  • electronics with a holder for hanging
  • electromagnetic valve
  • corner valve with filter – 2 pcs
  • battery holder (AUM 7.B)
  • cylindrical batteries 1,5 V (AUM 7.B) - 4 pcs
  • connecting hoses
  • fixing strap
  • M8 screw with nut and pads
  • tube with mastic
b
Figure

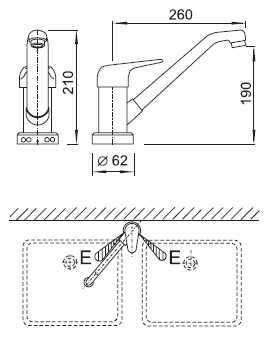

Figure - AUM 7 for sink with twin bowles
b
E -zone of scanning
b
b
Product title
AUM 7 -
for sink with twin bowles, with lever mixer - 12V, 50Hz
AUM 7.B -
for sink with twin bowles, with lever mixer - 6V (4x1,5)
b
Download information about the product
dwgAUM 7 data for projectants - ( 39 kB )
