 AUM 3 is an automatic sensor-controlled tap for washbasins. Water turns on automatically when the user's hands are within the sensor's range and turns off when they have been removed. Water keeps on running for a short period of time after the hands have been removed from the scanning zone – after-flow delay time. The water stops flowing automatically if the sensor has been screened for longer than 30 seconds.
Automatic sensor-controlled taps AUM 3 meet EU standards and are intended for facilities where the user’s comfort and the maintenance of hygiene is required at maximum water savings. |
| | | Version types | | AUM 3 - supplied with a.c. voltage of 12 V from source of power supply ZAC | | AUM 3.B - supplied with d.c. voltage of 6 V from cylindrical batteries . The electronics program guarantees that the electromagnetic valve does not open the water inlet without enough battery capacity to ensure its closing. | | AUM 3.E - for non-pressure through-flow or reservoir heaters | | AUM 3.1 and AUM 3.1B - for one cold or premixed water | | AUM 3.2 and AUM 3.2B - for hot and cold water | | AUM 3.TV and AUM 3.TVB - with thermostatic valve |  |
| | | Basic technical information | | Radius of sensor: | self-adjusting | | Water inlet: | G 1/2“ | | Water pressure: | 0,2 – 0,8 MPa (AUM 3.B) | | | 0,1 – 1,0 MPa (AUM 3) | | | 0,3 MPa (AUM 3.E) | | Diameter of installation opening in washbasin: | min. 33 mm | | After-flow period: | 0 – 4 sec. (adjusted to 1 sec.) | | Power supply: | 12 V, 50 Hz (AUM 3) | | | 6 V DC (AUM 3.B) | | Power requirement: | 12 V (AUM 3) | | | 6 VA (AUM 3.1, .TV, .E) | | Source of power supply: | ZAC 1/20 (max. 2x AUM 3.2; or 3x AUM 3.1, .TV, .E) | | | ZAC 1/50 (max. 5x AUM 3.2; or 8x AUM 3.1, .TV, .E) | | | batteries – 1,5 V (AUM 3.B) – 4 pcs | | Operating life of batteries: | approx. 1,5 years at 100 operations a day | | Weight: | 2 kg | |
| | | Requirements for setting up the construction | - Set-up water inlet, pipe 1/2“ – as per picture
- Set-up outlet – as per siphon
- Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC (does not apply to AUM 3.B)
- Ceramics of the washbasin assembled as per picture
| |
| | | Complete delivery | - outflow arm with photocell sensor
- electronics with a holder for hanging
- electromagnetic valve (AUM 3.2 – 2 pcs)
- thermostatic valve with backflow valves (AUM 3.TV and .TVB)
- mixing T – part with backflow valves (AUM 3.2B)
- corner valve with filter (AUM 3.2, .TV, .2B and .TVB – 2 pcs)
- battery holder (AUM 3.B)
- cylindrical batteries 1,5 V (AUM 3.B) - 4 pcs
- connecting hoses
- fixing strap
- M8 screw with nut and pads
- tube with mastic
| |

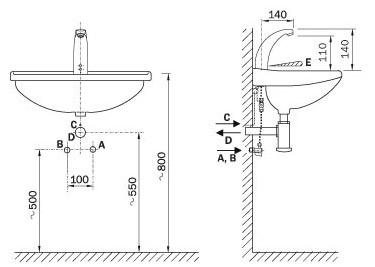

| | | Figure |
 | | | | A - | cold water (AUM 3.2, .2B, .TV, .TVB)
MIXED WATER (AUM 3.1, .1B, .E)
Inner pipe G1/2" | | D - | outlet | | B - | hot water (AUM 3.2, .2B, .TV, .TVB)
Inner pipe G1/2" | | E - | zone of scanning | | C - | electricity supplay (AUM 3) cable CYKY 2Ax1,5 | |
| | | |
| |
| AUM 3.1 - | simple tap for one water - 12V, 50Hz |
| AUM 3.1B - | simple tap for one water - 6V (4x1,5) |
| AUM 3.2 - | simple tap for hot and cold water - 12V, 50Hz |
| AUM 3.2B - | simple tap for hot and cold water - 6V (4x1,5) |
| AUM 3.TV - | simple tap for hot and cold water with thermostatic valve - 12V, 50Hz |
| AUM 3.TVB - | simple tap for hot and cold water with thermostatic valve - 6V (4x1,5) |
| AUM 3.E - | simple tap for through-flow water heater - 12V, 50Hz |
| |
|
|
|
AUM 3 data for projectants - ( 29 kB )
